Wrist Strap Install Instructions

(Anbernic RG35xx/RG353v)

Step 1

This is going to be quick :)

First, lay a soft cloth down on your table (so you don't scratch the screen). Place the device upside down on the cloth.

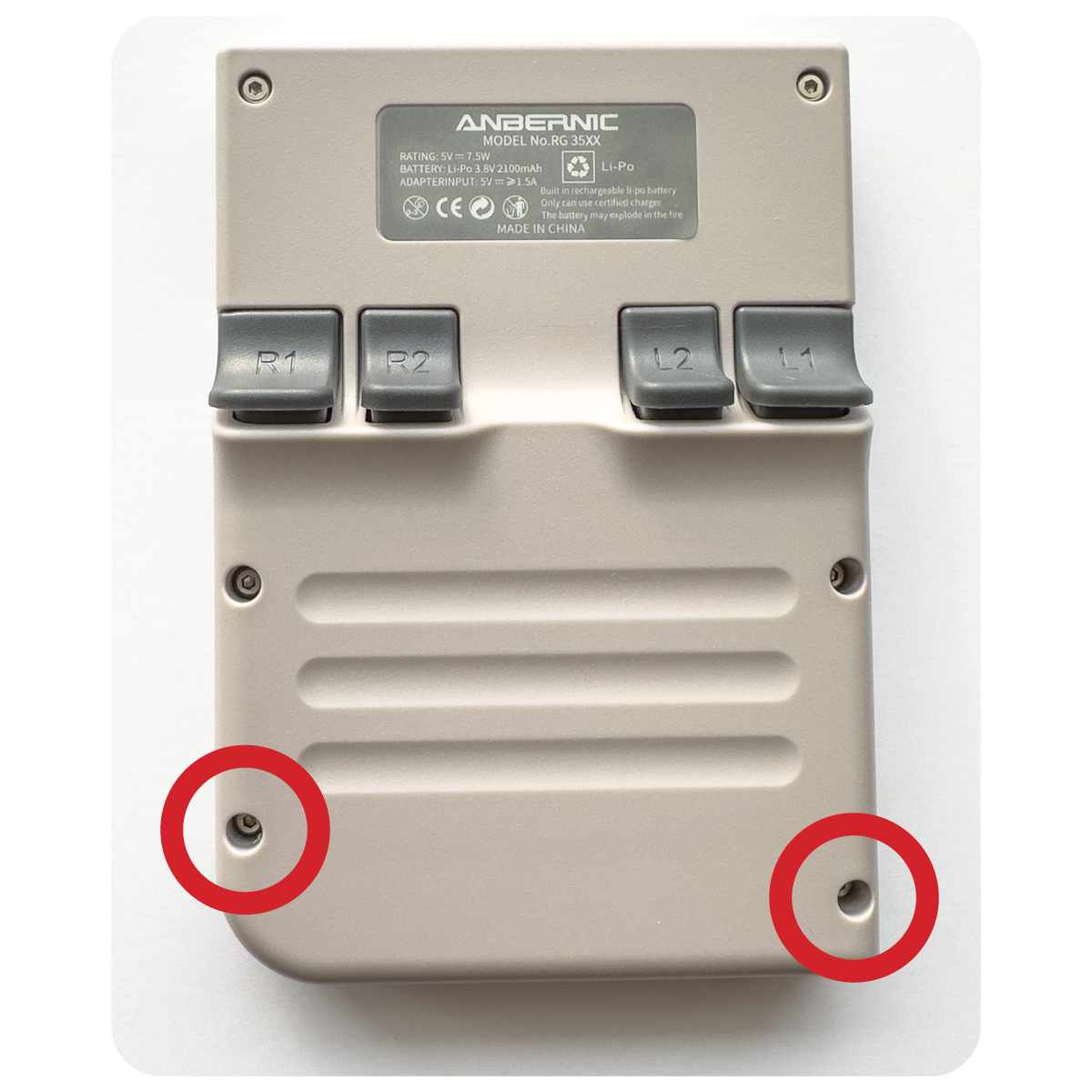

Pick which side of the device you want to install the wrist strap on.

Use either the bottom right or bottom left screw.

DO NOT use any other location.

Step 2

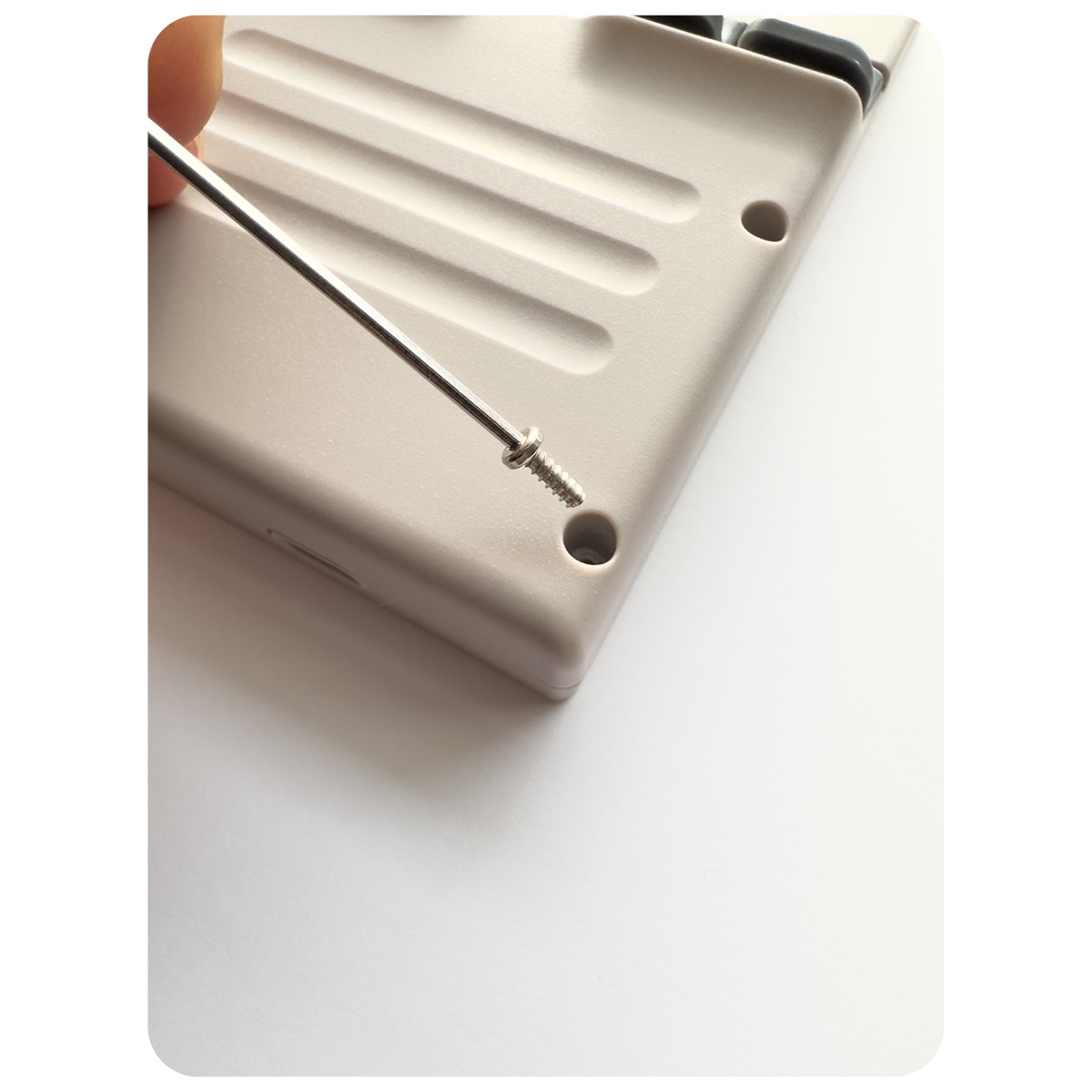

Unscrew the selected screw using the included hex wrench. Place the original screw somewhere where you won't lose it.

I recommend storing the original screw inside the plastic bag your wrist strap came in :)

Step 3

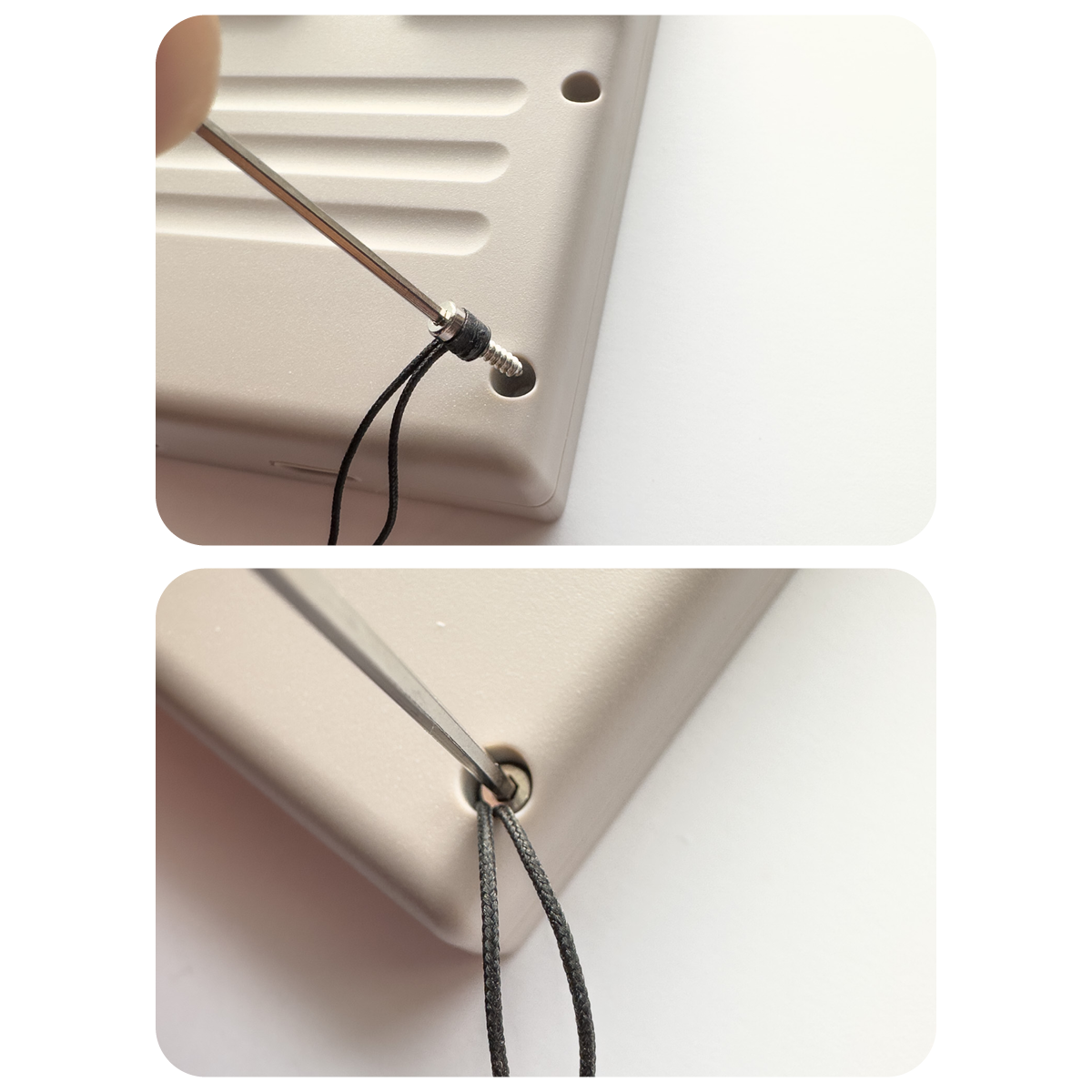

Screw in the screw that comes attached to the wrist strap.

Gently push into the screw while screwing for a good grip and to avoid stripping it.

Screw it in until it is snug and fully seated, but not too tight to avoid stripping the plastic hole!

Step 4 & Removal

Test the wrist strap by giving it a few test drops or tugs over a couch or pillow.

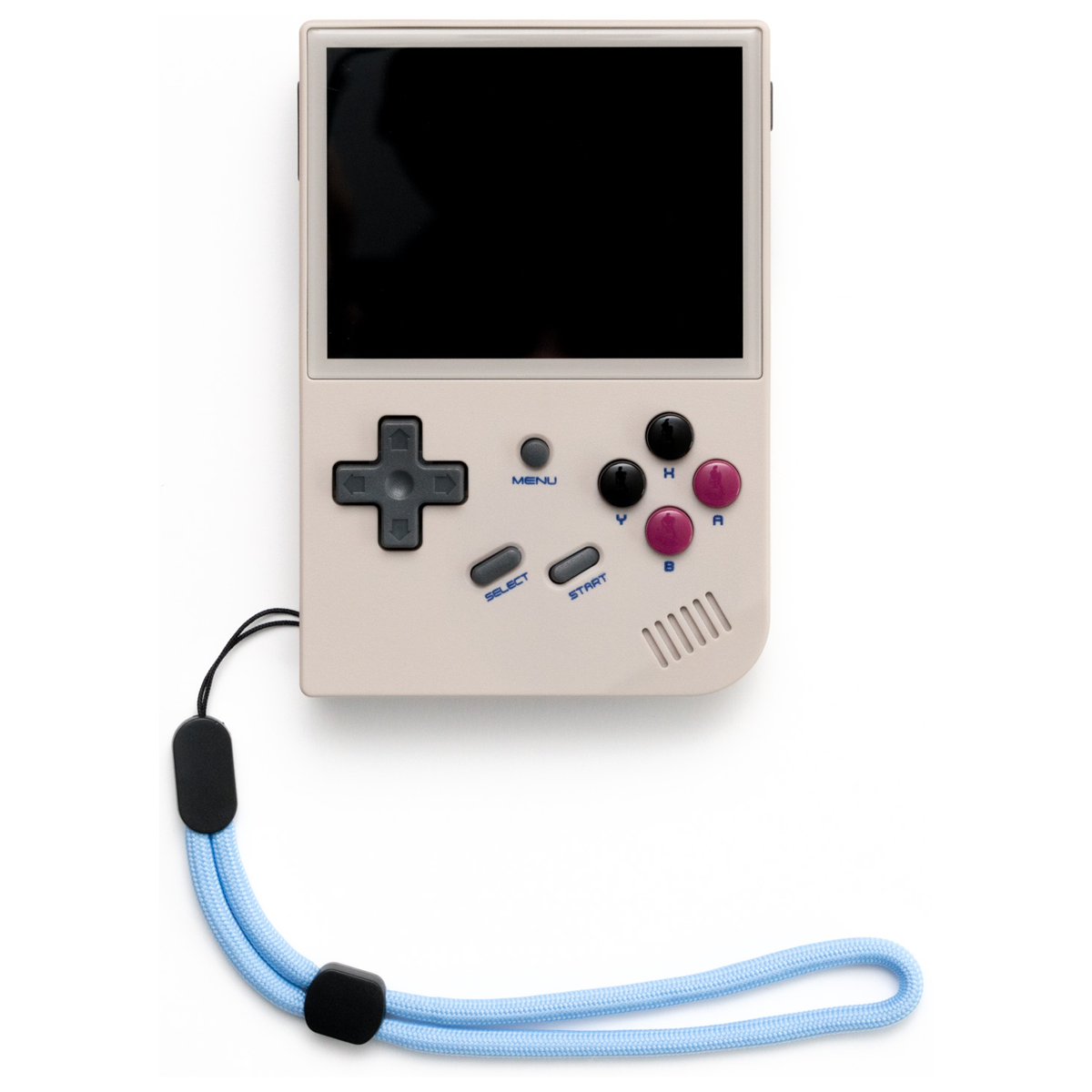

Thats it! You're all done! Enjoy keeping your retro handheld safer!

Reach out to me if you need any help!

Contact me

IMPORTANT: If you decide to remove the wrist strap and use it again, unscrew while slightly pulling the wrist strap out at the same time to keep the adapter in place on the screw :)
